全自動方底紙袋機

時間：2022-9-20

點擊：7020

產品簡介：

FY-330T全自動方底圓繩貼把紙袋機 FY-330T Fully Automatic Square Bott […]

詳細介紹

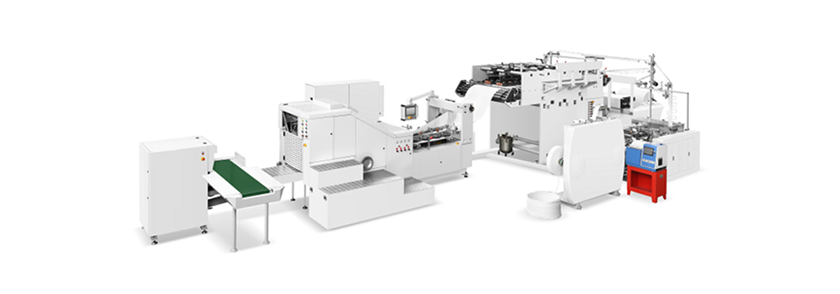

FY-330T全自動方底圓繩貼把紙袋機

FY-330T Fully Automatic Square Bottom Paper Bag Machine with Handle inline

性能與用途 Properties and uses：

全自動方底紙袋機，用于生產帶手挽的手提紙袋。本機特別適用于食品和服裝等行業的購物袋批量生產。該機由手挽機將卷繩和紙片卷筒制做成手挽，通過輸送系統將手挽送至貼把機組再將原色或印刷好的卷筒紙進行紙繩位預點斷、貼片位涂膠、自動粘貼手挽，再由主機將貼有手挽的紙張進行涂邊膠、成筒、切斷、壓痕、底部涂膠、袋底成型并輸送出袋，整個過程一次性同步完成。本機采用德國原裝進口高速運動控制器（CPU），通過高速總線控制伺服的運行，保證運動穩定，運動曲線平滑，是廣大印刷包裝廠家首選的全自動手提方底紙袋設備。

Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.

主要特點Main features:

1.采用法國SCHNEIDER觸摸屏人機界面，操作功能一目了然，便于掌控。

2.采用德國原裝LENZE運動控制器（PC），通過與光纖一體化，保證高速運行穩定。

3.采用德國原裝LENZE伺服電機搭配德國原裝SICK光電眼修正，精確跟蹤印刷袋尺寸。

4.原料裝卸采用液壓自動升降結構，放卷采用全自動恒張力控制。

5.原料糾偏采用意大利SELECTRA，降低紙卷對位調整時間。

1.Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.

2.Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensure stable and high speed running.

3.Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.

4. Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.

5.Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.

技術參數??Technical parameter?

機型 Model	FY–330T
紙袋裁切長度Cutting length	270-530mm
（全）紙袋裁切長度Cutting length	270-430mm
紙袋寬度Bag width	120-330mm
（全）紙袋寬度Bagwidth	200-330mm
袋底寬度Bottom width	70-180mm
紙袋克重Paper?Thickness	60-150g/㎡
（全）紙袋克重Paper?Thickness	80-150g/㎡
紙卷寬度Paper roll width	380-1050mm
（全）紙卷寬度Paper roll width	620-1050mm
紙料直徑Roll paper diameter	ф1300mm
紙芯內經Paper core	ф76mm
手把貼片長度Patch length	152mm
手把貼片寬度patch width	45-50mm
手把繩長Handle length	320/340mm
紙繩間距Handle distance	75mm
手把紙繩直經Rope diameter	Ф3-5mm
手把貼片紙卷寬度 Patch?paper roll width	90-100mm
手把紙卷直徑 patch?paper?roll diameter	ф1200mm
手把貼片紙克重 patch?paper?thickness	100-135g/㎡
機械速度Machine Speed	30-200bags/min
紙袋速度 production?speed?for bags without handles	30-180bags/min
帶手提速度 production?speed?for bags with handles	30-150bags/min
封底方式 Bottom folding type	?
裁切刀具方式Cutting?knife	鋸齒裁切Sawtooth cutting
總功率Power?Supply	380V 3Phase?40KW
整機重量Machine weight	17T
整機尺寸Machine size	13850x6500×2350mm
